StorePick Webshop Order Refund Reason

Overview

Order Refund Reason Lambda calls the GET API to get refund reasons based on the order ID. The lambda transforms the response returned by the API and sends the appropriate json response back to the endpoint.

Account Needed

AWS accounts will be required for DEV/SIT/PROD.

References

1. Python Service with infrastructure as code.

2. Unit tests & code coverage at about 90%+

3. Configuration for multiple environments, DEV/SIT/PRD

Document	Ref
Architecture Document	Solution Architecture.
Jira Story	Technical Elaboration - SPDP-7657.
Bitbucket repository	webshop-service-order-refund-reason.

Testing Approach

We will be using a BDD approach where the behaviour will be tested first the code will be developed to match the tested behaviour.

Deployment strategy

The deployment is handled by a jenkins multibranch pipeline,sk-feature. The commit in the develop branch will automatically deploy the application to the aws environments. The release is done by standard process of tagging the release branch, and by building and deploying from the tags. The tag format is sit-v*-<commit> for nonprod and prd-v*-<commit> for the production release. These tags are manually built on jenkins after the change request has been approved. The release branch is merged to the stable master branch after the successful production deployment.

Components

Components

• Order Refund Reasons Lambda -Runbook
• Order Refund Reasons API Lambda-infrastructure
• Order Refund Reasons API Lambda - codebase

Diagrams

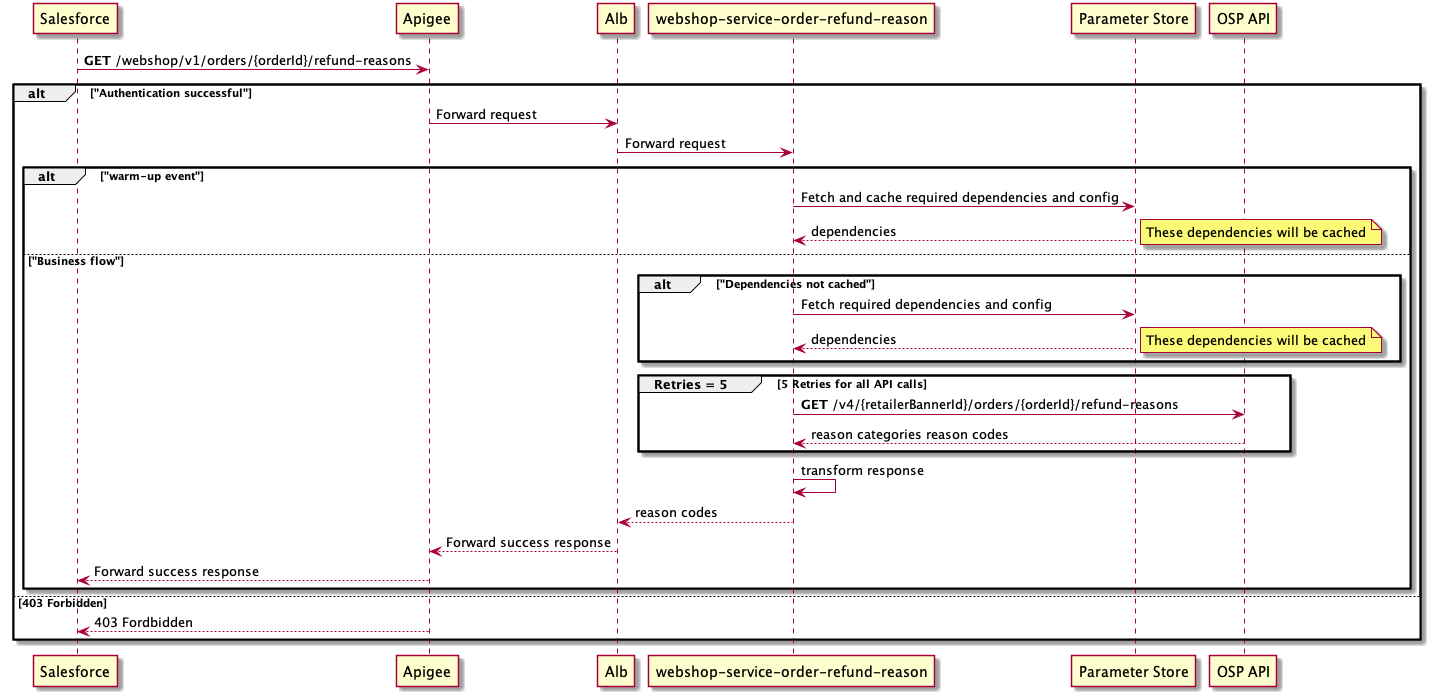

Order Refund Reasons Lambda work flow diagram
