Edit Order Notification Technical Design

Overview

Edit Order Notifications polls a view in Google Big Query to obtain a list of customer orders that are due for delivery the next working day. For each of the customer orders found, we need to query the Morissons Customer system to obtain the customer email address and mobile phone number. If we have a valid email we will call the marketing SPI to send an email reminder to the customer. Similarly if we have a mobile phone number we will send a SMS reminder through the marketing API. The status of the application is monitored through a Big Query report table and Datadog metrics.

References

Document

Ref

Business Analysis Pages

Business Analysis.

Architecture Document

Solution Architecture.

Jira Epic

Edit Order Notification: SPDP-721.

Main Jira Story

Edit Order Notification: SPDP-722.

Main Jira Story

Edit Order Reporting: SPDP-1037.

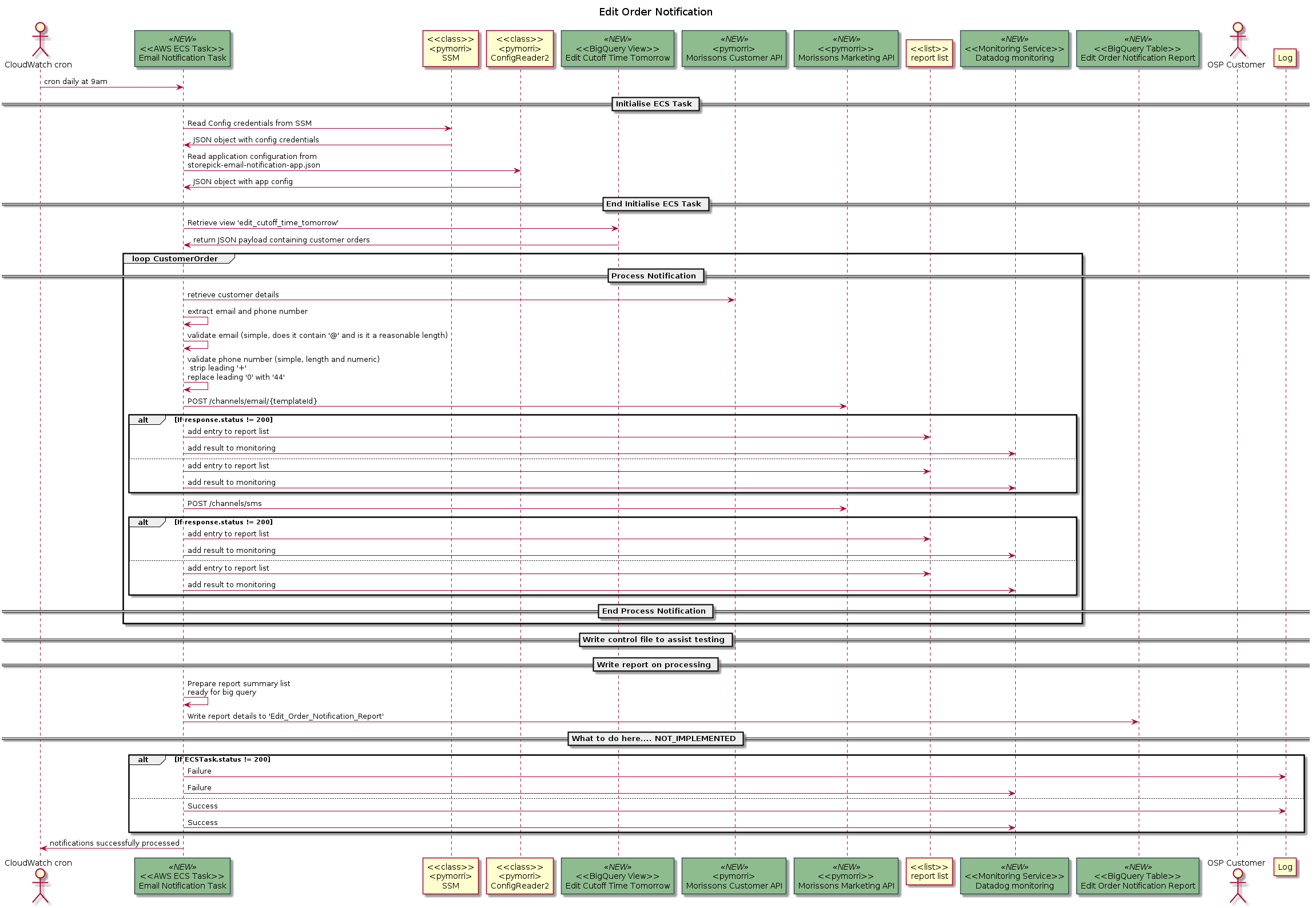

Sequence Diagram

@startuml title Edit Order Notification skinparam participant { BackgroundColor<<NEW>> DarkSeaGreen BorderColor<<NEW>> DarkSlateGray CardFontColor<<NEW>> white BackgroundColor<<NEW>> DarkSeaGreen BorderColor<<NEW>> DarkSlateGray CardFontColor<<NEW>> white ArrowColor Olive } Actor "CloudWatch cron" as CloudWatchTrigger participant "<<AWS ECS Task>>\nEmail Notification Task" as AWSECSEmailNotification << NEW >> participant "<<class>>\n<pymorri>\nSSM" as ssm_reader participant "<<class>>\n<pymorri>\nConfigReader2" as config_reader participant "<<BigQuery View>>\nEdit Cutoff Time Tomorrow" as BQEONView <<NEW>> participant "<pymorri>\nMorissons Customer API" as MoriCustomer << NEW >> participant "<<pymorri>>\nMorissons Marketing API" as MoriMarketing << NEW >> participant "<<list>>\nreport list" as list participant "<<Monitoring Service>>\nDatadog monitoring" as Monitoring << NEW >> participant "<<BigQuery Table>>\nEdit Order Notification Report" as BQEONReport << NEW >> Actor "OSP Customer" as OSPCustomer CloudWatchTrigger -> AWSECSEmailNotification : cron daily at 9am == Initialise ECS Task == AWSECSEmailNotification -> ssm_reader : Read Config credentials from SSM ssm_reader -> AWSECSEmailNotification : JSON object with config credentials AWSECSEmailNotification -> config_reader : Read application configuration from \nstorepick-email-notification-app.json config_reader -> AWSECSEmailNotification : JSON object with app config == End Initialise ECS Task == AWSECSEmailNotification -> BQEONView : Retrieve view 'edit_cutoff_time_tomorrow' BQEONView -> AWSECSEmailNotification : return JSON payload containing customer orders group loop CustomerOrder == Process Notification == AWSECSEmailNotification -> MoriCustomer : retrieve customer details AWSECSEmailNotification -> AWSECSEmailNotification : extract email and phone number AWSECSEmailNotification -> AWSECSEmailNotification : validate email (simple, does it contain '@' and is it a reasonable length) AWSECSEmailNotification -> AWSECSEmailNotification : validate phone number (simple, length and numeric)\n strip leading '+'\nreplace leading '0' with '44' AWSECSEmailNotification -> MoriMarketing : POST /channels/email/{templateId} alt If response.status != 200 AWSECSEmailNotification -> list : add entry to report list AWSECSEmailNotification -> Monitoring : add result to monitoring else AWSECSEmailNotification -> list : add entry to report list AWSECSEmailNotification -> Monitoring : add result to monitoring end AWSECSEmailNotification -> MoriMarketing : POST /channels/sms alt If response.status != 200 AWSECSEmailNotification -> list : add entry to report list AWSECSEmailNotification -> Monitoring : add result to monitoring else AWSECSEmailNotification -> list : add entry to report list AWSECSEmailNotification -> Monitoring : add result to monitoring end == End Process Notification == end 'CustomerOrder' == Write control file to assist testing == 'AWSLambda -> s3_file_operations : write control list to <s3_bucket>/processing 's3_file_operations <-> S3 : write list as csv to S3 's3_file_operations -> AWSLambda : file successfully written == Write report on processing == AWSECSEmailNotification -> AWSECSEmailNotification : Prepare report summary list\nready for big query AWSECSEmailNotification -> BQEONReport : Write report details to 'Edit_Order_Notification_Report' 'AWSLambda -> s3_file_operations : write control list to <s3_bucket>/processing 's3_file_operations <-> S3 : write list as csv to S3 's3_file_operations -> AWSLambda : file successfully written == What to do here.... NOT_IMPLEMENTED == alt If ECSTask.status != 200 ' This may be written to BQ AWSECSEmailNotification -> Log : Failure AWSECSEmailNotification -> Monitoring : Failure else AWSECSEmailNotification -> Log : Success AWSECSEmailNotification -> Monitoring : Success end AWSECSEmailNotification -> CloudWatchTrigger : notifications successfully processed @enduml
