Edit Order Notification Infrastructure¶

Summary¶

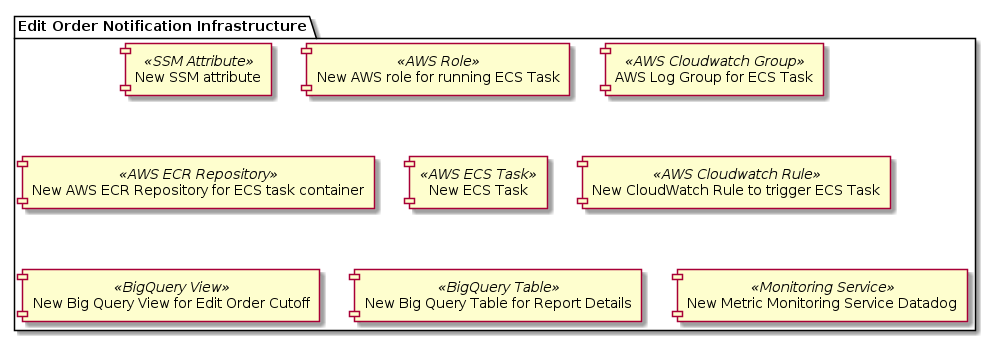

The Edit Order Notification solution uses the ECS task pattern coupled with a BigQuery Table for test reporting.

Components¶

Component	Description	Activity	Ref
<<SSM Attribute>>	New SSM key specifically for edit order notifications to protect the content	New	SSM Key
<<AWS Role>>	New AWS Role to segregate the ECS Task execution context so we can secure the SSM Key	New	AWS Role
<<AWS Cloudwatch Group>>	New CloudWatch log group to collect the task logs in	New	AWS Cloudwatch Group
<<AWS ECR Repository>>	New repository to hold the docker container for the task	New	AWS ECR Repository
<<AWS ECS Task>>	New ECS task to execute the actual code for the notification	New	AWS ECS Task
<<AWS Cloudwatch Rule>>	New trigger rule to run the ECS task daily at 9am	New	AWS Cloudwatch Rule
<<BigQuery View>>	New view in big query to retrieve customer orders for edit cutoff	New	Big Query Cutoff Time Tomorrow View
<<BigQuery Table>>	New table in big query to send notification report data	New	Big Query Report
<<Monitoring Service>>	New monitoring service using Datadog	New	Monitoring Service - Datadog

SSM Key¶

The security credentials will be stored in the following security credentials in the digital Jenkins.

storepick_edit_order_apikey_sandpit
storepick_edit_order_apikey_nonprod
storepick_edit_order_apikey_prod

These credentials are used to populate the SSM key below in the respective environments. This secure attribute is created from the common-infrastructure repository.

storepick_edit_order_apikey

Values Example for Dev environment with Google Credentials (private/authorisation values are shown as empty):

{
    "API_KEY": "",
    "AUTHORISATION": "",
    "GOOGLE_CREDENTIALS_DEV":
        {
            "type": "service_account",
            "project_id": "mrw-storepick-dev",
            "private_key_id": "",
            "private_key": "",
            "client_email": "store-pick-real-time@mrw-storepick-dev.iam.gserviceaccount.com",
            "client_id": "",
            "auth_uri": "https://accounts.google.com/o/oauth2/auth",
            "token_uri": "https://oauth2.googleapis.com/token",
            "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
            "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/store-pick-real-time%40mrw-storepick-dev.iam.gserviceaccount.com"
        }
}

AWS Role¶

AWS Cloudwatch Group¶

Environment	Log Group
dev	clg-euw1-dev-storepick-edit-order-001/clg-euw1-dev-storepick-edit-order-001/edit-order-dev-001/
sit	clg-euw1-sit-storepick-edit-order-001/clg-euw1-sit-storepick-edit-order-001/edit-order-sit-001/
uat	clg-euw1-uat-storepick-edit-order-001/clg-euw1-uat-storepick-edit-order-001/edit-order-uat-001/
prd	clg-euw1-prd-storepick-edit-order-001/clg-euw1-prd-storepick-edit-order-001/edit-order-prd-001/

AWS ECR Repository¶

Environment	ECR Repository
dev	storepick/edit-order-confirmation-task-v1-dev
sit	storepick/edit-order-confirmation-task-v1-sit
uat	storepick/edit-order-confirmation-task-v1-uat
prd	storepick/edit-order-confirmation-task-v1-prd

AWS ECS Task¶

Environment	ECS Task Definition
dev	edit-order-dev-001
sit	edit-order-sit-001
uat	edit-order-uat-001
prd	edit-order-prd-001

AWS Cloudwatch Rule¶

Rule	Target	Schedule
cwrule-euw1-dev-digital-edit-order-notification-001	edit-order-dev-001	Fires every day at 9 am
cwrule-euw1-sit-digital-edit-order-notification-001	edit-order-sit-001	Fires every day at 9 am
cwrule-euw1-uat-digital-edit-order-notification-001	edit-order-uat-001	Fires every day at 9 am
cwrule-euw1-prd-digital-edit-order-notification-001	edit-order-prd-001	Fires every day at 9 am

Big Query Role¶

Big Query Cutoff Time Tomorrow View¶

To find the customers and orders that require edit order notifications based on the cutoff. The orderId and retailerCustomerId values are retrieved from following big query views:

Environment	View
dev	mrw-storepick-dev.store_pick_views.edit_cutoff_time_tomorrow
sit	mrw-sit-storepick.store_pick_views.edit_cutoff_time_tomorrow
prd	mrw-prod-storepick.store_pick_views.edit_cutoff_time_tomorrow

Big Query Report¶

To assist with testing we will publish a report with details of notification failures and successes to the following big query tables:

Environment	Table
dev	mrw-storepick-dev.store_pick.Edit_Order_Notification_Report
sit	mrw-sit-storepick.store_pick.Edit_Order_Notification_Report
prd	mrw-prod-storepick.store_pick.Edit_Order_Notification_Report

Monitoring Service - Datadog¶

To allow detailed monitoring of metrics and important values within the application process, including the health of the process. During the running of the application, logs are made in a specific format shown below, which are then picked up by the Datadog service from the CloudWatch logs.

The MetricMonitoring class is used within the code to produce these logs (see Metric Monitoring (i.e. Datadog)), and this relies on the correct config for monitoring format (see: Configuration (from config service)).

Example log format needed to be picked up by Datadog:

"MONITORING|{timestamp}|{metric value}|{metric type}|sp_{app short name}_{metric name}_{environment}_{metric type}|app:{application name},env:{environment}"

Example of an “ok” (0 value) check log sent during running of the edit order notifications application:

"MONITORING|1581675879.286664|0|check|sp_eon_app_health_dev_check|app:storepick-edit-order-notification,env:dev"
